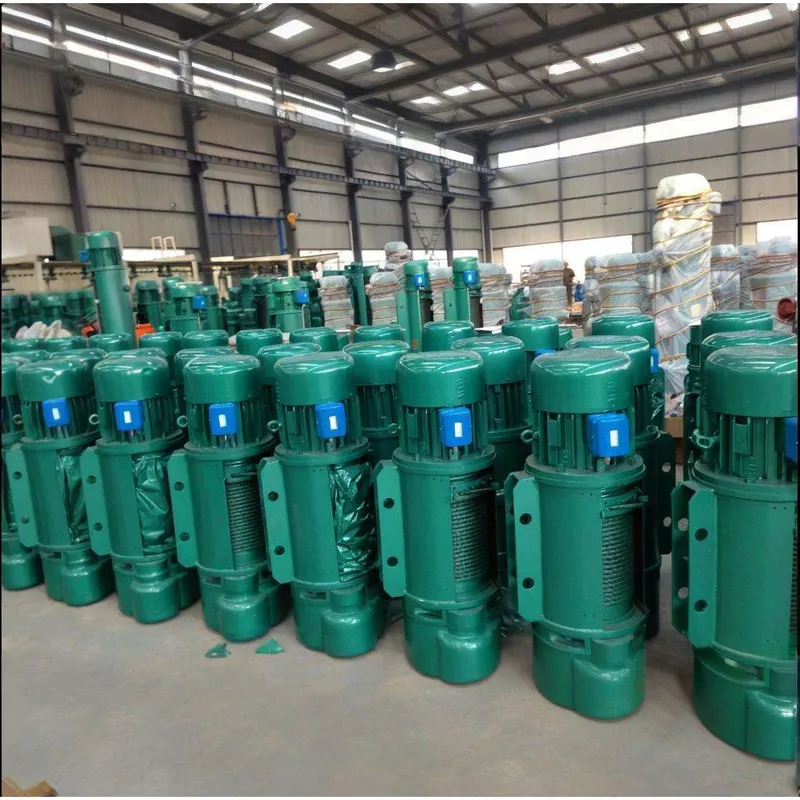

2 Ton Wire Rope Electric Hoist for Light Industrial Lifting

Structural composition

Hoisting motor:Conical rotor brake motor, self-locking upon power failure, smooth starting, and large braking torque.

Reduction mechanism:Hardened helical gear transmission, high efficiency, low noise, and long service life.

Drum:The drum is located in the middle of the cylindrical body, with multiple layers of wire rope wound and neatly arranged.

Wire rope:Special wire rope for lifting, with high tensile strength, wear resistance, and safety factor.

Pulley and Hook Assembly: The blue hook assembly with a pulley on the left side features a multiplier design that makes lifting easier and lowering more stable.

Hook control components:Yellow hook control/limiting components, forged hook with anti-slip latch.

Housing:Cylindrical green casing with ventilation holes; features a compact design and good heat dissipation.

Electrical control box:Blue electrical box, integrating contactors and protection components, with neatly arranged wiring terminals.

Safety signage:All warning labels on the aircraft are complete, and safety reminders are in place.

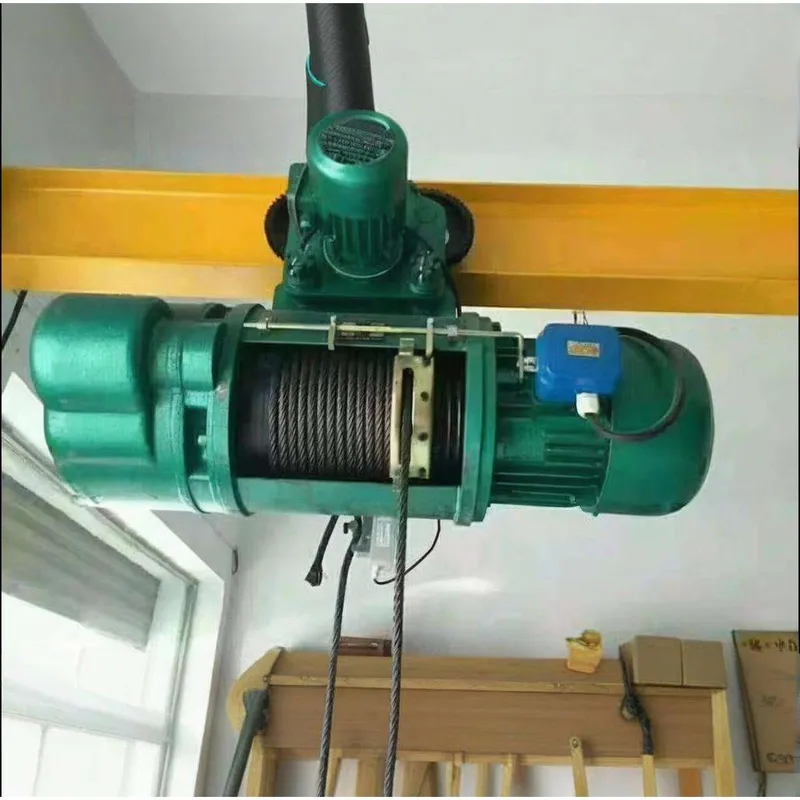

Installation structure:Running type, suspended below the I-beam rail.

Safety devices: upper and lower bidirectional limit switches, power-off brake, hook anti-detachment device, warning labels.

Working principle

The hoisting motor drives the drum to wind up and unwind the wire rope via a reducer. The wire rope then drives the hook assembly via pulleys to raise and lower the hook vertically. The pulley assembly's multiplier design makes lifting easier, more stable, and prevents swaying during positioning. If equipped with an electric trolley, the entire machine can travel horizontally along I-beam rails, forming a complete "lifting + traversing" lifting capability. Operation is completed by a single worker using a handheld device; the button layout is clear and logically intuitive, requiring no professional crane operator.

Core advantages

With a 2-ton load capacity and more margin:It has twice the load capacity of the 1-ton class, covering more conventional workpieces and small equipment, and allows for sufficient safety margin when selecting a model.

Cylindrical body with heat dissipation holes: compact structure, light weight, good heat dissipation performance, and stable operation even during continuous operation.

Pulley ratio rope winding:The pulley block design makes lifting 2 tons effortless, with smooth operation and accurate positioning without wobbling.

Easy to install: It can be suspended or runner installed under the I-beam rail, and can be used immediately after power connection. It requires little construction and can be put into operation quickly.

Easy maintenance:With its classic structure and few potential points of failure, daily maintenance only requires checking the wire rope wear, braking performance, and lubrication condition; no dedicated personnel are needed for maintenance.

Safety features include:bidirectional upper and lower limit switches to prevent top impact, a conical brake motor with power-off self-locking to prevent hook slippage, hook anti-detachment tongue, and complete warning labels on the machine body.

Flexible power supply:Standard configuration is three-phase 380V, and a single-phase 220V version can be customized according to site conditions, so it can be used in places without three-phase power.

High versatility:It can be used independently for beam hanging, or it can be matched with electric single beam, cantilever crane, KBK flexible system, one machine for multiple scenarios.

Application scenarios

Applications include: loading and unloading in small machining workshops; loading, unloading, and stacking of goods in warehouses; equipment disassembly and assembly in repair shops; material handling in stores and laboratories; material transfer at assembly line workstations; hoisting of parts, blanks, and semi-finished products; assembly of pumps, valves, motors, and hardware; auxiliary hoisting in building materials, auto parts, and light industry workshops; and auxiliary hoisting in agriculture and food processing. It is compatible with electric single-girder cranes, cantilever cranes, and KBK flexible systems.
