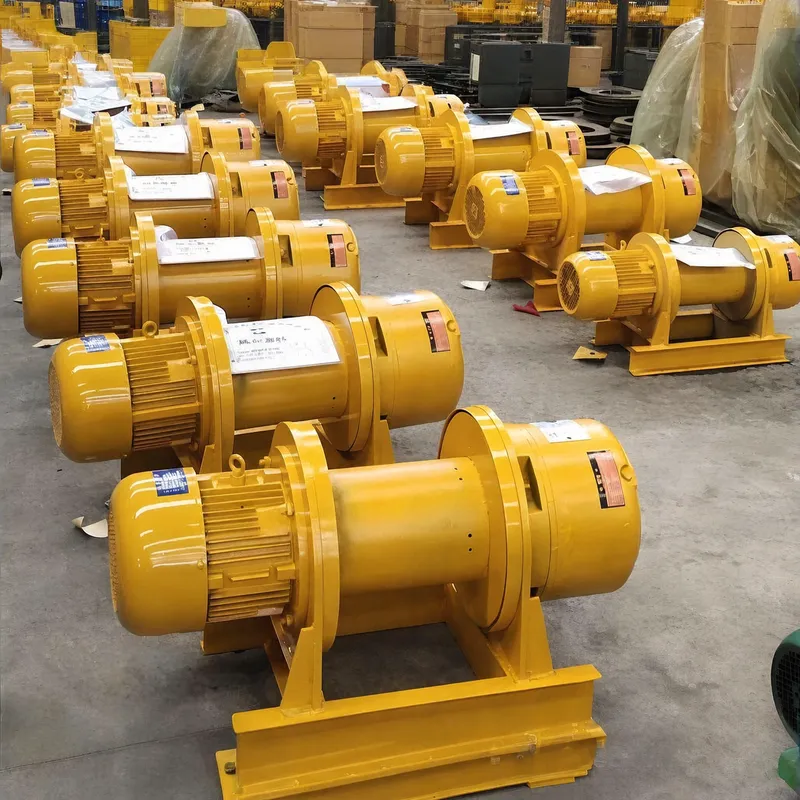

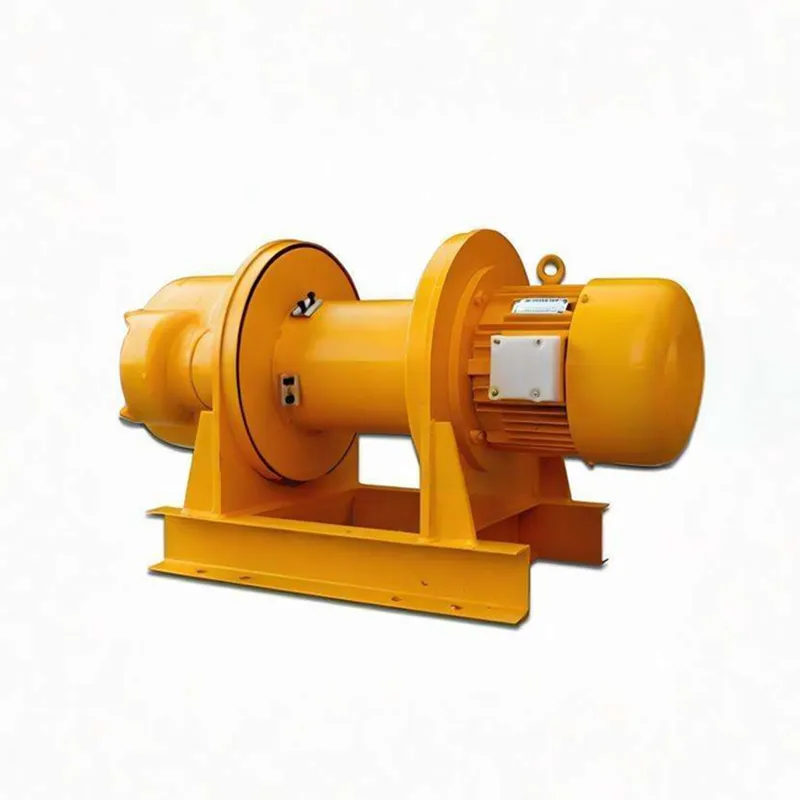

Heavy Duty Electric Wire Rope Winch with Motor and Steel Cable for Industrial Lifting
Structural composition
Hoisting motor: Side-mounted motor with heat dissipation fins/vents on the casing, ensuring good heat dissipation and suitability for continuous operation.
Reduction mechanism:Hardened gear transmission, large reduction ratio, large output torque, and smooth operation.
Drum: Cylindrical drum with two circular end plates, multi-layered wire rope winding, large rope capacity, and neat rope arrangement.
Wire rope:Special wire rope for lifting, tensile strength and wear resistance.
Hook/traction device: The rope end is equipped with a red lifting hook (which can be replaced with a traction hook or a ring lifting device).
Base support:Rectangular/framed metal base, stable for floor installation.
Top lifting ring:Facilitates lifting and repositioning with other lifting equipment, offering flexibility and maneuverability.
Electrical control:White junction box, integrating control and protection components.
Braking system:Electromagnetic brake, self-locking upon power failure to prevent hook slippage.
Control system:Ground-operated flashlight switch, optional wireless remote control
Safety devices:power-off braking, overload protection, limit switches (optional), inspection cover, warning signs.
Working principle
The motor, after being reduced in speed and increased in torque by a reduction gear, drives the drum to rotate. The drum winds in and out of the wire rope—winding in the rope pulls the load closer to or lifts it upwards, while unwinding the rope involves slowly lowering or releasing it under controlled braking. By changing the front-end attachments (hook, traction hook), the same machine can perform both vertical lifting and horizontal traction operations. Operation is completed by one worker using a handheld flashlight or remote control; in the event of a power outage, the electromagnetic brake immediately locks, preventing the load from sliding uncontrollably.
Core advantages
Dual-purpose traction and lifting:By changing attachments, it can switch between vertical lifting and horizontal towing, making it a multi-purpose machine with high equipment utilization.
Large rope capacity and long stroke:The cylindrical drum is wound in multiple layers, and the length of the wire rope is much greater than that of the electric hoist, making it suitable for long-distance traction operations.
Stable ground installation:The base bracket is fixed to the ground, and the force is directly transmitted to the ground without relying on roof trusses or tracks for support.
The top lifting ring is easy to move:when it is necessary to change work positions, it can be lifted as a whole using a workshop crane or forklift, which is flexible and hassle-free.
Good heat dissipation and continuous operation:The motor housing is equipped with heat dissipation fins, which provides excellent heat dissipation performance and is suitable for high-frequency continuous operation.
Reliable braking:The electromagnetic brake is self-locking when power is off, and braking occurs instantly when power is off, preventing the hook from slipping and ensuring high safety.
Simple structure and low maintenance:The classic structure of drum + reducer + motor has few points of failure. Daily maintenance only requires checking the wire rope, brake and lubrication.
Wide range of specifications:Multiple tension and rope capacity options are available, and can be configured according to traction distance and load size.
Application scenarios
Applications include: towing and positioning of equipment in factories and mines; hoisting of construction materials; traction and transportation in inclined slopes/tunnels; hoisting of deep wells, foundation pits, and vertical shafts; mooring and towing of ships and docks; handling of large items in warehouses; pulling and hauling during steel structure installation; traction in power, mining, and bridge construction; horizontal movement of heavy workpieces in workshops; and forming simple hoisting systems when used with gantry cranes, derricks, and shafts.
