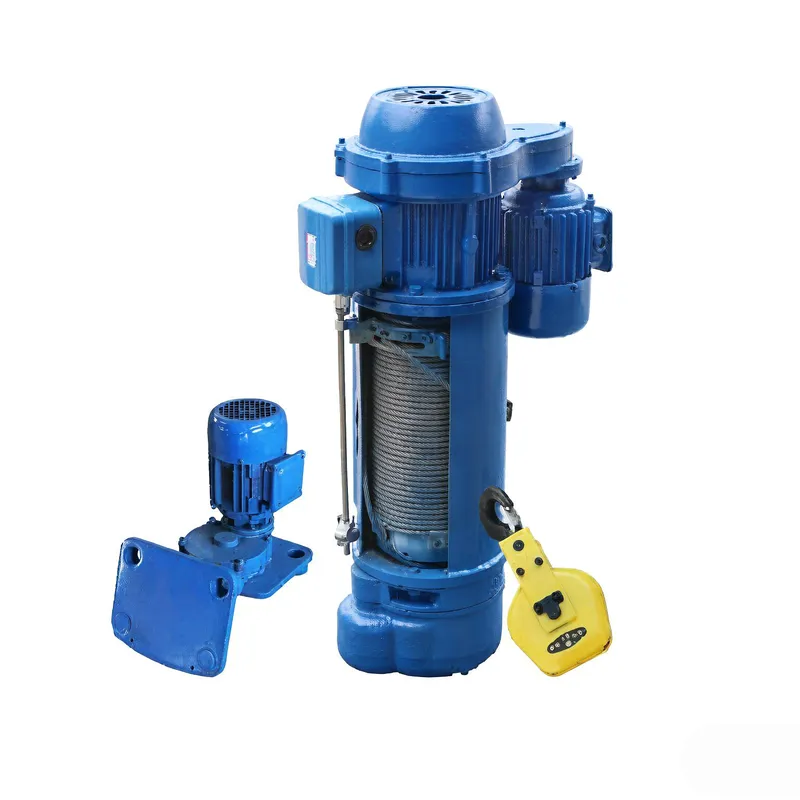

Two-speed wire rope electric hoist
Structural composition
Main hoisting motor: conical rotor brake motor, self-locking when power off, responsible for constant speed lifting.
Slow-speed auxiliary motor: side-mounted auxiliary motor, drives slow speed setting, realizes precise alignment.
Speed reduction mechanism: hardened helical gear transmission, high efficiency, low noise, long service life.
Drum: central drum multi-layer wire rope winding, neat rope arrangement.
Wire rope: lifting special wire rope, tensile, wear-resistant, high safety factor.
Pulley hook assembly: yellow pulley with black diagonal stripe warning, multiplier design optimizes lifting capacity and speed, equipped with black forged hook and anti-detachment latch.
Body casing: metal shell with heat dissipation fins and circular vents, excellent heat dissipation performance.
Electrical control box: blue electrical box, integrating contactors and protection components.
Running trolley: electric trolley drives the whole machine to move along the I-beam track.
Control system: yellow button box (flash gate), optional wireless remote control.
Safety device: bidirectional limit switch, power-off braking, overload protection, hook anti-detachment, warning signs.
Working principle
Normal speed mode: the main hoisting motor drives the drum to wind and unwind the wire rope through the reducer, and the hook rises and falls quickly at normal speed for empty travel, saving operation time.
Slow speed mode: switch to the slow-speed auxiliary motor drive, reduce the speed through the transmission mechanism, and the hook rises and falls slowly at about 1/10 of the normal speed. It is used for the last part of the stroke when the heavy object is close to the landing point to achieve millimeter-level fine-tuning alignment.
Translation: the electric trolley drives the whole machine to move horizontally along the I-beam track.
Core advantages
Double speed, both accurate and efficient: normal speed saves time in the air travel, slow speed ensures accuracy in the landing travel, and the two speeds each perform their duties in one operation.
Prevent damage during placement: slow speed mode, gentle placement of heavy objects, avoid bumps and damage during mold clamping, precision assembly, and equipment installation, directly reduce rework and scrap.
Reduce the impact of inching: no need for frequent inching to achieve precision, greatly reduce the impact load on the motor, brake, and wire rope, and the equipment lasts longer.
High lifting height: the wire rope winch structure allows for a lifting height far exceeding the conventional upper limit of chain hoists, suitable for high floors, deep foundation pits, and other working conditions.
Good heat dissipation and continuous operation: the shell is equipped with heat dissipation fins and ventilation holes, with excellent heat dissipation performance and suitable for high-frequency continuous operation.
Line coverage of a single machine: the power distribution trolley travels along the track, one machine covers the entire workstation line, not only "lifting up and down" but also "transporting left and right".
Safe protection complete: upper and lower bidirectional limit switches prevent top punching, conical brake motor with power-off self-locking, hook anti-detachment tongue piece, and overload protection.
Strong versatility: can be used alone for beam hanging, or matched with electric single beam, suspension crane, European crane, KBK system, etc.
Application scenarios
Mold clamping and disassembly (slow speed, anti-collision) · Precision assembly and equipment positioning· Machine tool loading and unloading · Lifting and transporting parts, blanks, and semi-finished products· Material transfer at assembly line workstations · Warehousing, loading and unloading, and stacking· Equipment maintenance, installation, and hoisting ·Pump, valve, motor, and reducer manufacturing · Workstations requiring frequent inching and fine-tuning for alignment · Use with electric single-girder cranes, overhead cranes, and European-style cranes
