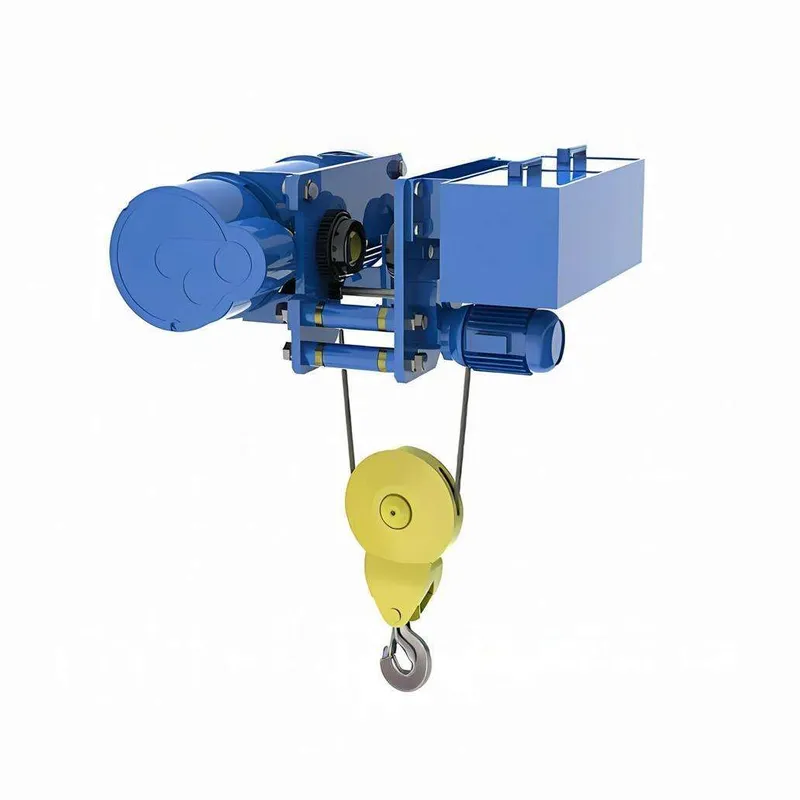

Ultra low hanging wire rope electric hoist
Structural composition
Lifting motor : Blue body with heat dissipation grille, conical rotor brake motor, self-locking when power is off, and good heat dissipation .
Drum mechanism : Blue drum + square structural component + metal roller/shaft component, multi-layer winding of steel wire rope, neatly arranged rope .
Speed reduction mechanism : hardened helical gear transmission, which is highly efficient, low in noise, and has a long service life .
Wire rope : Special wire rope for lifting, with tensile strength, wear resistance, and high safety factor .
Pulley hook assembly : Yellow pulley assembly with multiplier design to increase lifting capacity, equipped with silver-gray/black forged hooks and anti-slip latches .
Ultra-low headroom design : The motor and drum are mounted in parallel on the side, making it flat and compact, thus reducing the building height required .
Control system : flashlight or wireless remote control .
Safety devices : bidirectional limit switches, power-off braking, overload protection, hook anti-detachment, and warning signs .
Working principle
The hoisting motor drives the drum via a reducer to wind up and unwind the wire rope. The wire rope loops around the lower pulley hook assembly, causing the hook to rise and fall vertically. The pulley assembly's multiplier design optimizes the hook's stroke and lifting capacity. When equipped with a trolley, the entire machine can travel horizontally along the I-beam track, forming a complete "lifting + translation" lifting capability. The ultra-low headroom design allows the hook's upper limit to be closer to the track, thus enabling the hook to reach a higher height and have a longer effective stroke within the same factory building height. Operation is completed by a single worker using a handheld device or remote control, eliminating the need for a professional crane operator.
Core advantages
Ultra-low headroom, suitable even for low-ceilinged factories : The side-mounted parallel layout of the motor minimizes the building height occupation, significantly increasing the effective lifting height. No need to raise or modify old factories, mezzanine floors, or low-ceiling workshops.
High lifting height : The wire rope winch structure allows for a lifting height far exceeding the conventional upper limit of chain hoists, making it suitable for high-rise buildings, deep foundation pits, automated warehouses, and other similar working conditions.
High speed and high cycle time : The lifting speed of wire rope is faster than that of chain hoists of the same tonnage, making it suitable for production lines with high lifting frequency and high efficiency requirements.
Good heat dissipation and continuous operation : The motor housing is equipped with heat dissipation grilles, which provides excellent heat dissipation performance and is suitable for high-frequency continuous operation.
Remote control optional, flexible positioning : Equipped with a wireless remote control handle (red/green emergency stop + multiple buttons), allowing operators to stay away from heavy objects and freely choose a safe position.
Safety features include : bidirectional upper and lower limit switches to prevent top impact, a conical brake motor with power-off self-locking, a hook anti-detachment latch, and overload protection.
High versatility : It can be used independently for beam hanging, or it can be matched with electric single beam, suspended crane, European crane, cantilever crane, etc.
Application scenarios
Lifting operations in low-rise/mezzanine workshops; renovation of old factories without increasing height; lifting operations in deep pits, underground garages, and automated warehouses; workpiece lifting in machining workshops; large component transfer on assembly lines ; mold disassembly, assembly, and flipping; loading and unloading of steel/profiles/blanks; warehouse stacking and inbound/outbound operations; equipment maintenance and installation lifting; compatible with electric single-girder cranes, overhead cranes, and European-style cranes.
